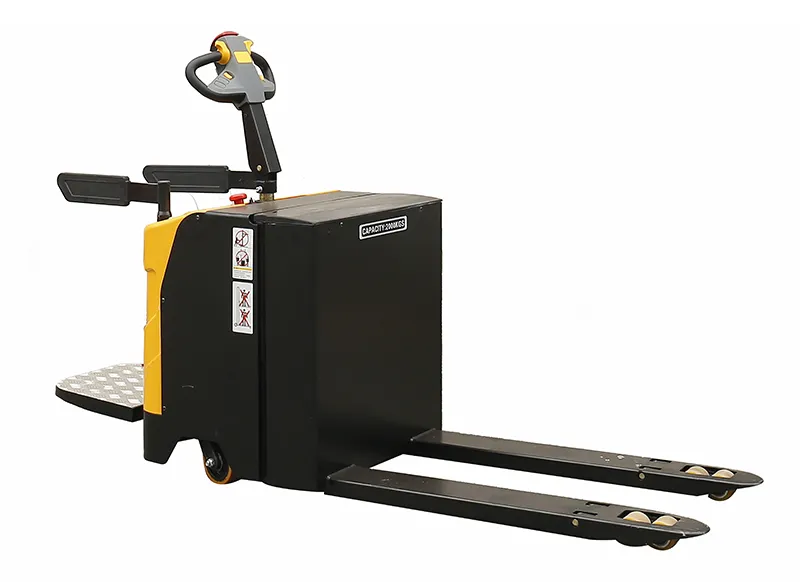

Fully Electric Pallet Truck

Stand-on pallet jack with 2000/3000kg capacity, 1150/1220mm fork length, 85mm to 125mm lifting height

The fully electric pallet truck is a reliable and efficient solution for handling heavy pallets in indoor applications, including loading, unloading, and horizontal transport. Designed to withstand heavy-duty tasks such as pallet moving, high-speed load transportation, and loading dock operations, this pallet truck is a valuable investment for businesses aiming to enhance efficiency while protecting staff from strains and injuries. The shock-absorbing platform ensures operator comfort, allowing them to stand safely behind the unit for convenient and effortless operation.

Available in multiple versions with load capacities of 2,000kg and 3,000kg, it is an ideal choice for enhancing productivity in material handling operations.

2000/3000kg

85mm to 125mm

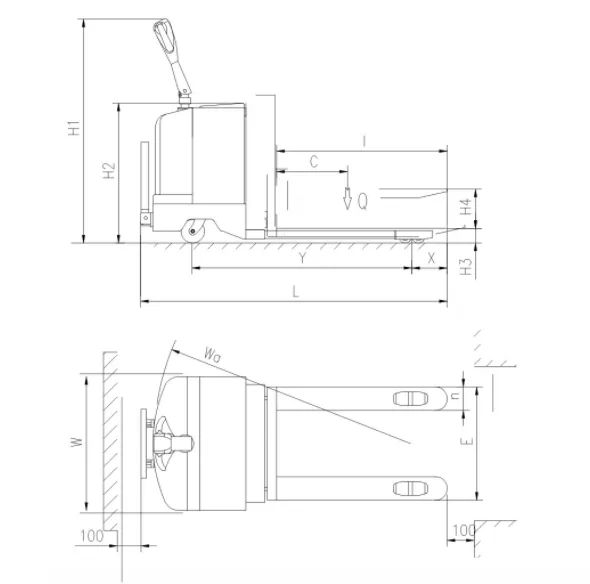

Specifications

Model Number		FEPT-20	FEPT-30
Rated Capacity (Q)	kg	2000	3000
Load Center (C)	mm	600	600
Max. Fork Height (H4)	mm	125	125
Min. Fork Height (H3)	mm	85	85
Handle Height (H1)	mm	1400	1400
Frame Height (H2)	mm	890	890
Fork Size (l×n)	mm	1150×160	1220×160
Fork Width (E)	mm	570(680)	570(680)
Min. Turning Radius (Wa)	mm	1620	1900
Wheel Base (Y)	mm	1350	1500
Front-Wheel Distance (X)	mm	385	160
Max. Travel Speed (No Load)	km/h	4.5-6	4.5-6
Max. Travel Speed (Full Load)	km/h	4-5	4-5
Max. Gradeability	%	8-10	8-10
Driving Motor	V/kW	24/1.2	24/1.3
Lifting Motor	V/kW	24/2.2	24/2.2
Battery	V/Ah	24/210	12×2/210
Charger	V/A	24/20	24/20
Handle Operation		/	Electric power steering
Overall Length	mm	2000	2030
Overall Width	mm	820	820
Overall Height	mm	1400	1400
Overall Net Weight	kg	650	700

Features

Shock-absorbing stand-on platform is designed to reduce operator fatigue, providing enhanced comfort during long driving hours.
Integrated control handle allows all functions to be performed easily with one hand.
Features three braking functions: release braking, reverse braking, and emergency braking, for maximum safety during operation
Emergency power cut-off switch to ensure operator’s safety by allowing immediate power disconnection in case of faults.
