Drivable Vertical Mast Lift | Aerial Work Platform

FAWP Aerial Work Platform

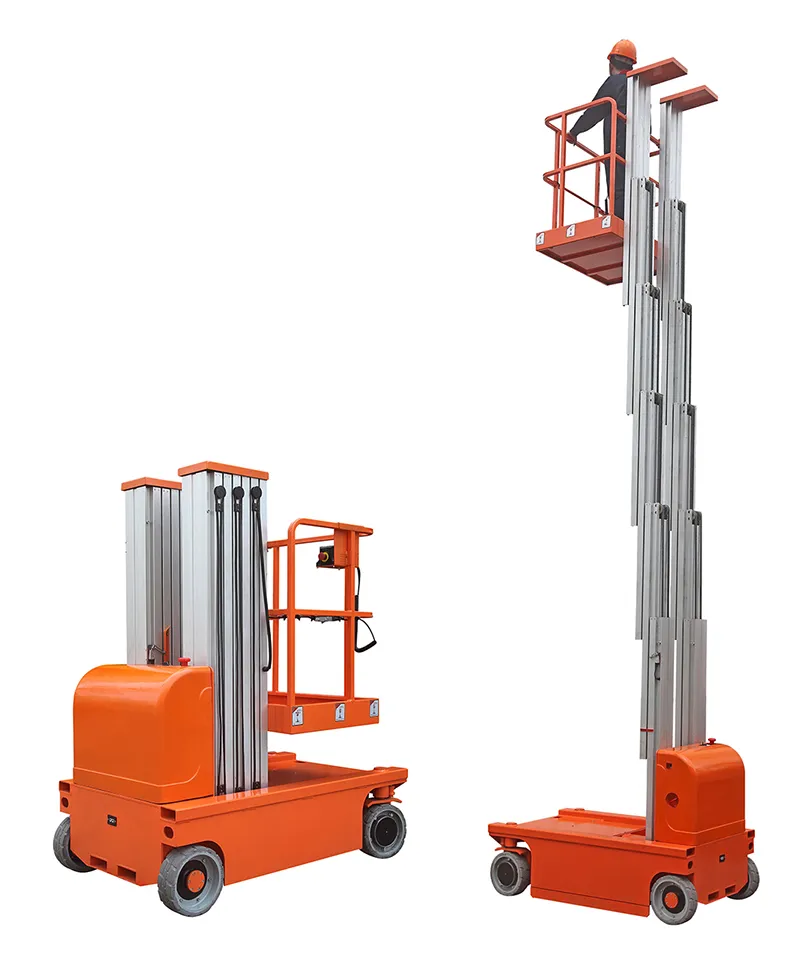

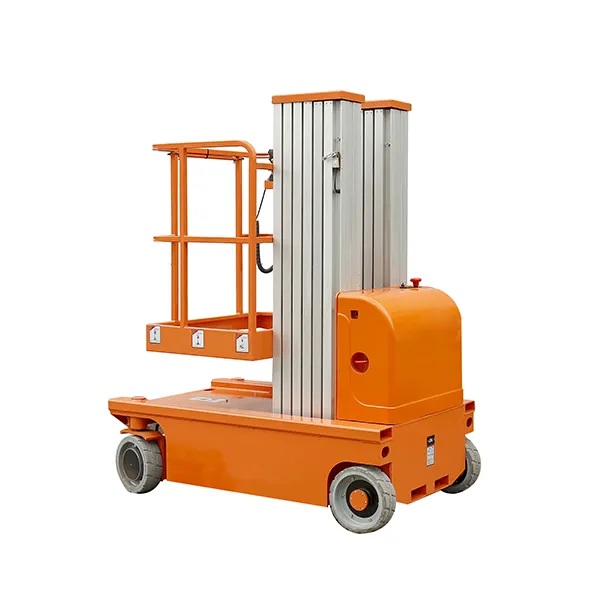

Drivable Vertical Mast Lift (Double Mast)

Self-propelled aluminium alloy aerial lift platform with 150/200kg capacity, up to 10500mm working height

The fully automatic double-mast vertical lift is crafted from high-strength premium aluminum alloy, offering a sleek design, compact size, lightweight construction, and user-friendly operation. Its mobility and balance make it an ideal choice for navigating through standard doorways, elevators, and narrow passageways. Operators can control the platform from both the ground and the lift itself, ensuring convenience and versatility for tasks in factories, hotels, restaurants, stations, airports, cinemas, and exhibition halls.

150/200kg
10500mm

Request a Quote

Specifications

Model Number	Unit	FAWP7.5-2000	FAWP9-2000
Max. Platform Height	mm	7500	9000
Max. Working Height	mm	9000	10500
Min. Platform Height	mm	680	680
Ground Clearance	mm	20	20
Rated Lift Capacity	kg	200	150
Platform Size	mm	1000×700×1100
Max. Drive Speed (Platform Stowed)	km/h	3-4
Max. Drive Speed (Platform Elevated)	km/h	0.6-1
Min. Turning Radius	mm	1800
Max. Gradeability	%	20
Steering Wheel Size	mm	Ø305×100
Driving Wheel Size	mm	Ø305×100
Driving Motor	V/kW	2×2.4/0.5
Lifting Motor	V/kW	24/2.2
Battery	V/Ah	2×12/150
Charger	V/A	24/25
Pothole Protection System	/	Mechanical control
Overall Length	mm	1700
Overall Width	mm	1000
Overall Height	mm	2080	2180
Overall Net Weight	kg	1100	1250

Features

Includes a tilt sensor alarm that alerts operator if the incline angle becomes too steep. The system simultaneously cuts off the lifting and driving power for enhanced safety.
Features powerful, smooth dual motors that reduce motor speed for extended durability. Two driving speeds ensure quick movement and safe mobility during elevation.
Pothole protection ensures stability on uneven surfaces, offering peace of mind and reducing operational risks caused by unstable ground.
Equipped with a buzzer and flashing warning lights to alert surrounding personnel during operation

Applications

The drivable vertical mast lift is a versatile aerial work platform and widely used for:

Indoor lighting installation and maintenance
Installation of indoor fire sprinkler systems
Cleaning and maintenance of glass curtain walls
Installation and replacement of roof wiring

Standard Features

Automatic brake
Buzzer
Emergency lowering system
Automatic pothole protection
Horn
Hour meter
Emergency stop button

Forklift pockets
Hydraulic hose burst protection
Non-marking tires
Fault diagnosis system
Battery charging protection
Strobe light
Tilt sensor
