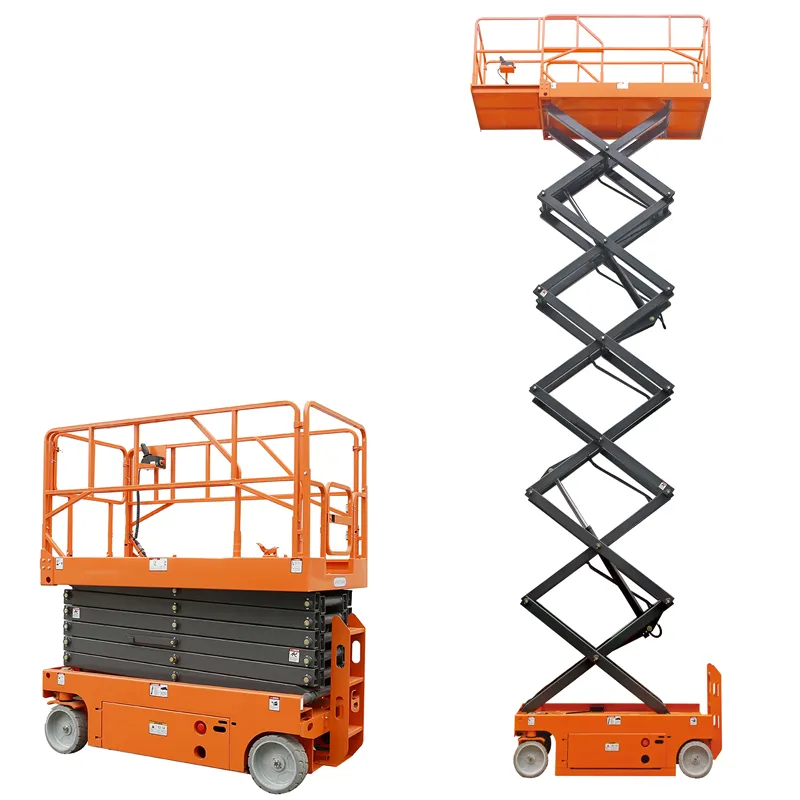

Self-Propelled Scissor Lift (Hydraulic Drive)

Mobile elevating work platform with 230/300kg capacity, up to 15800mm working height

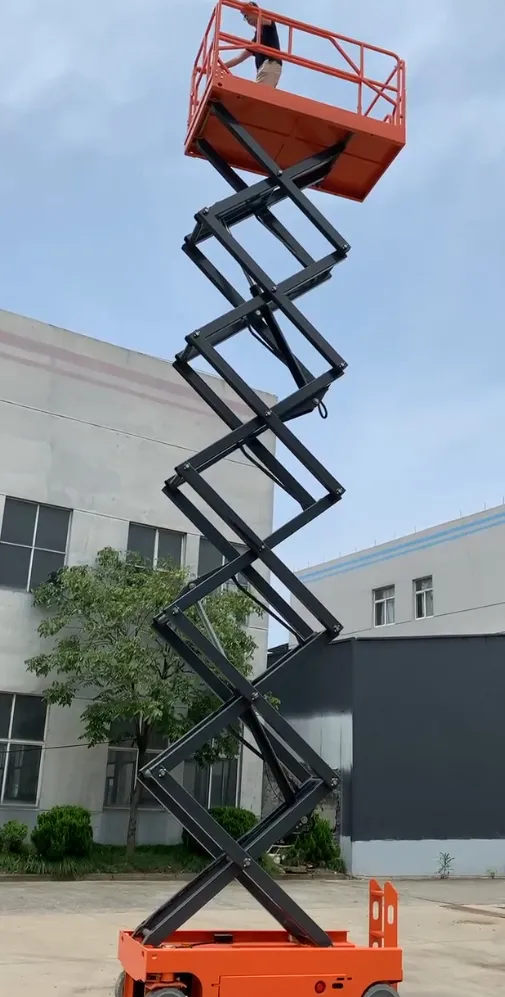

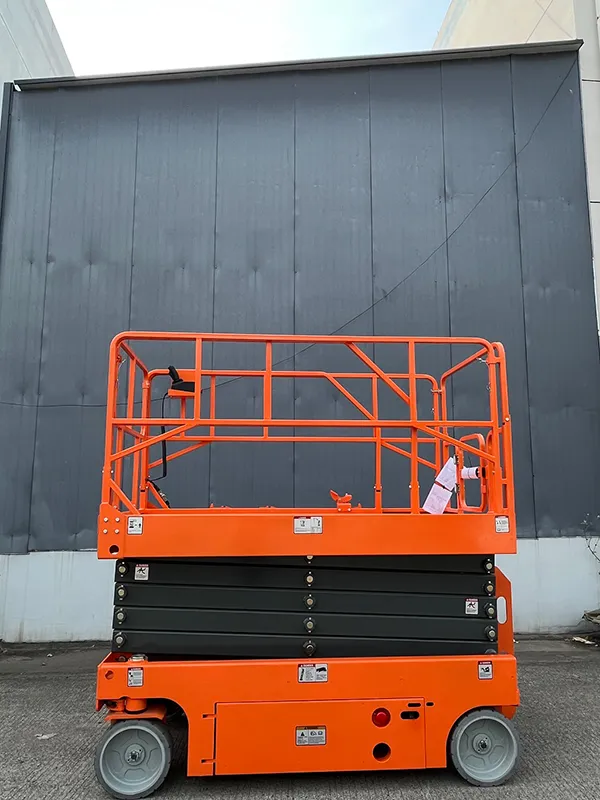

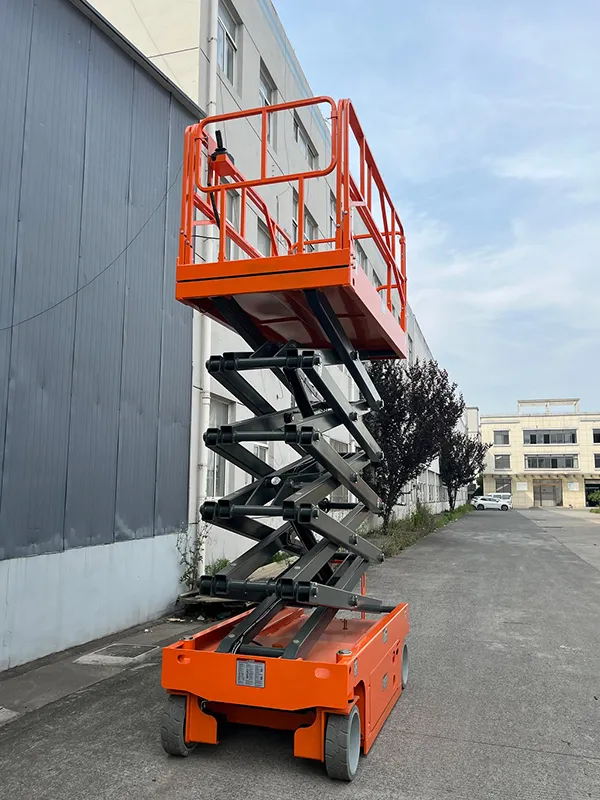

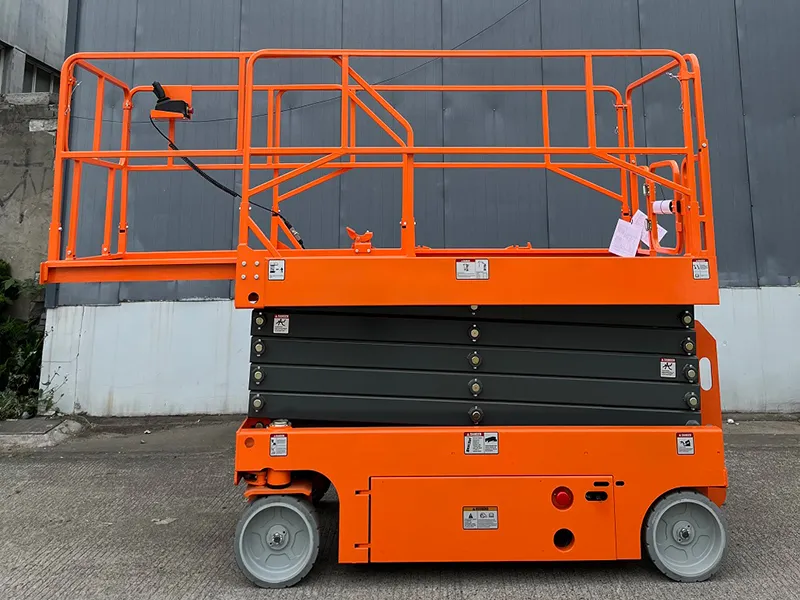

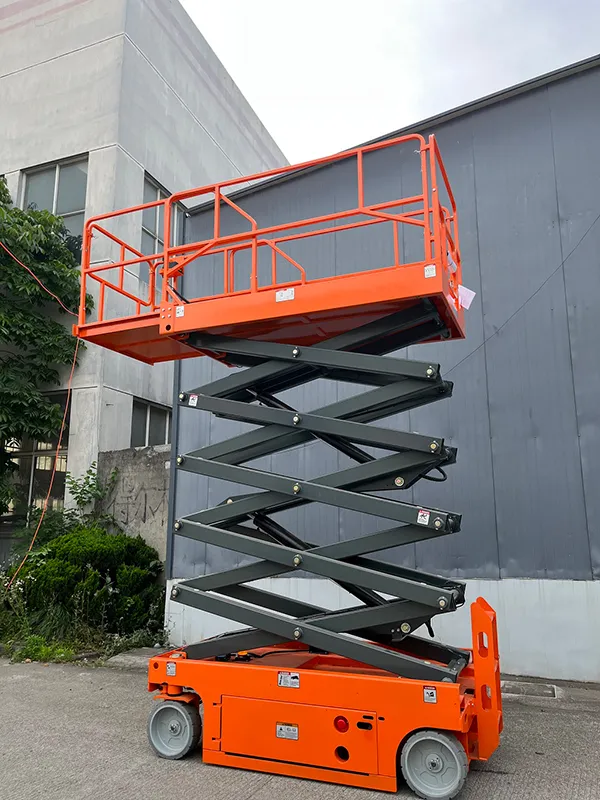

The self-propelled scissor lift is a mobile elevating work platform with a load capacity of 230/300kg and a working height of up to 15,800mm. Designed for efficiency and ease of use, this lift adopts a pure hydraulic drive and offers self-propelled functionality, allowing operators to perform elevation, forward and reverse motion, and steering directly from the platform, even during high-altitude tasks. Compared to manual mobile scissor lifts, its greatest advantage is that workers can control the movement of the scissor lift while standing on the platform, making operations significantly more convenient. These features improve work efficiency, reduce the number of operators required, and lower labor intensity compared to traditional hydraulic platforms.

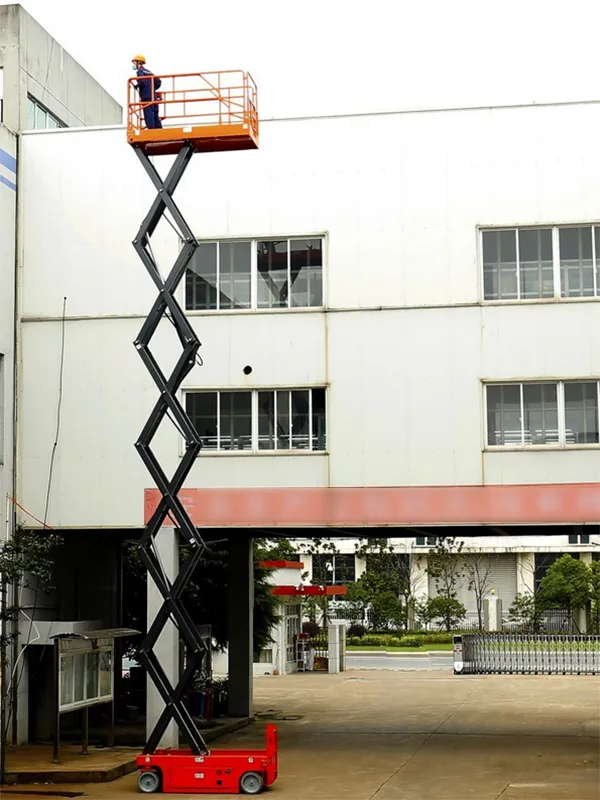

The platform includes a 90cm extension, providing additional workspace and extending its operational range. This aerial lift is suitable for continuous high-altitude operations across large areas, making it ideal for use in airport terminals, stations, docks, shopping malls, stadiums, residential properties, and factory workshops.

230/300kg

15800mm

Specifications

Model Number	Unit	FSJY0608	FSJY0810	FSJY1012	FSJY1214	FSJY1416
Max. Working Height	mm	8000	10000	12000	13800	15800
Max. Platform Height	mm	6000	8000	10000	11800	13800
Stowed Height (Guardrail Unfolded)	mm	2150	2275	2400	2525	2550
Stowed Height (Guardrail Folded)	mm	1690	1815	1940	2065	2100
Overall Length	mm	2400	2400	2400	2400	2770
Overall Width	mm	1150	1150	1150	1150	1300
Platform Size	mm	2270×1150	2270×1150	2270×1150	2270×1150	2640×1150
Platform Extend Length	mm	900	900	900	900	900
Ground Clearance (Platform Stowed)	mm	110	110	110	110	100
Ground Clearance (Platform Elevated)	mm	20	20	20	20	20
Wheel Base	mm	1850	1850	1850	1850	2230
Min. Turning Radius (Inner Wheel)	mm	0	0	0	0	0
Min. Turning Radius (Outer Wheel)	mm	2100	2100	2100	2100	2700
Power Source	V/kW	24/4	24/4	24/4	24/4	24/4.5
Max. Drive Speed (Platform Stowed)	km/h	3.5	3.5	3.5	3.5	3.5
Max. Drive Speed (Platform Elevated)	km/h	0.8	0.8	0.8	0.8	0.8
Lifting/Lowering Speed	sec	40/50	40/50	70/80	70/80	70/80
Battery	VAH	24/270	24/270	24/270	24/270	24/300
Charger	VAH	24/30	24/30	24/30	24/30	24/30
Max. Gradeability	％	20	20	20	20	25
Max. Safe Working Angle	°	2-3°	2-3°	2-3°	2-3°	2-3°
Control		Electro-hydraulic proportional control	Electro-hydraulic proportional control	Electro-hydraulic proportional control	Electro-hydraulic proportional control	Electro-hydraulic proportional control
Drive		Dual front wheel	Dual front wheel	Dual front wheel	Dual front wheel	Dual front wheel
Hydraulic Brake		Dual rear wheel	Dual rear wheel	Dual rear wheel	Dual rear wheel	Dual rear wheel
Wheel Size (Non-Marking Solid Wheel)	mm	Ø381×127	Ø381×127	Ø381×127	Ø381×127	Ø381×127
Rated Lift Capacity	kg	300	300	300	300	230
Platform Extend Capacity	kg	113	113	113	100	100
Overall Net Weight	kg	1900	2080	2490	2760	3400

Features

Error code display on handle: The handle is equipped with an error code display, allowing users and technicians to quickly identify and resolve issues, improving work efficiency.
Non-marking tires: Non-marking tires ensure that the lift operates without leaving marks or causing damage to flooring, making it ideal for use on sensitive surfaces.
Extended platform: A 90cm platform extension increases the fixed platform’s length, providing workers with a more spacious and convenient work area for high-altitude tasks.
Low-speed operation: Its low-speed mode is designed for navigating tight spaces, narrow passageways, or situations requiring enhanced safety. In low-speed mode, the movement, elevation, and turning speeds are reduced for greater control.
Integrated handle assembly: The handle integrates functions for forward/reverse motion, elevation, descent, and turning, allowing a single operator to control all movements directly from the platform. Adjustable speed settings further enhance operational flexibility.

Main Options

Standard Features

Automatic brake
Buzzer
Platform extension
Automatic pothole protection
Emergency lowering system
Battery indicator
Horn
Battery charging protection
Self-closing platform gate
Emergency stop button
Hour meter

Electric drive system
Safety maintenance support bar
Folding guardrails
Fault diagnosis system
Standard forklift pockets
Signal light
Tilt sensor
Maintenance-free battery

Optional Features

Lithium battery

Detail Features

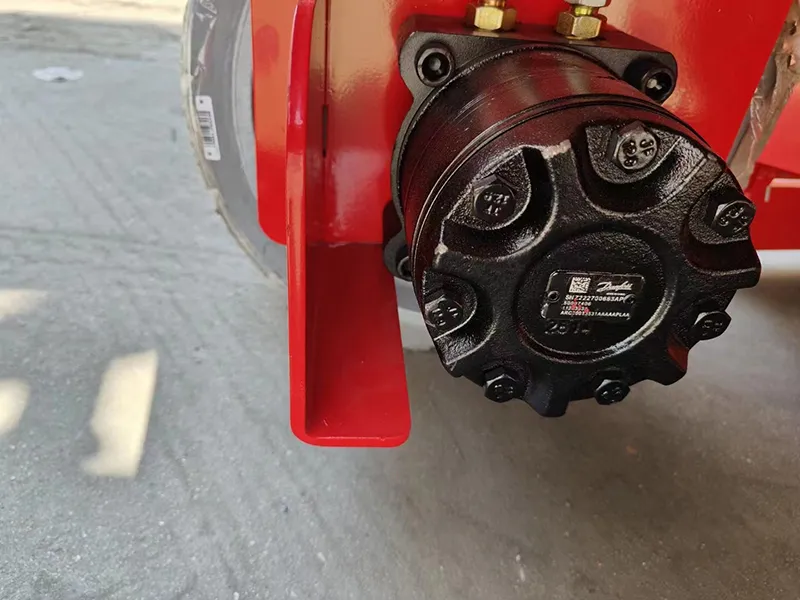

Motor

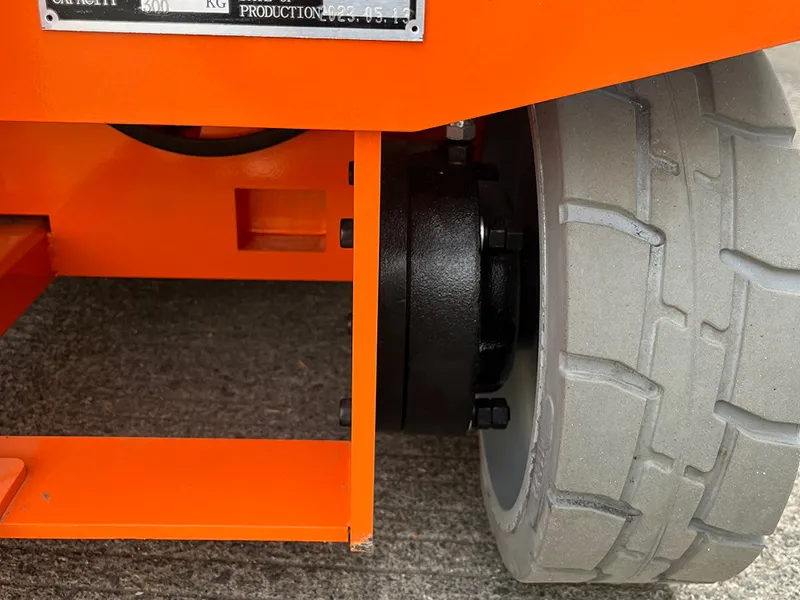

Non-marking tires

Extending platform

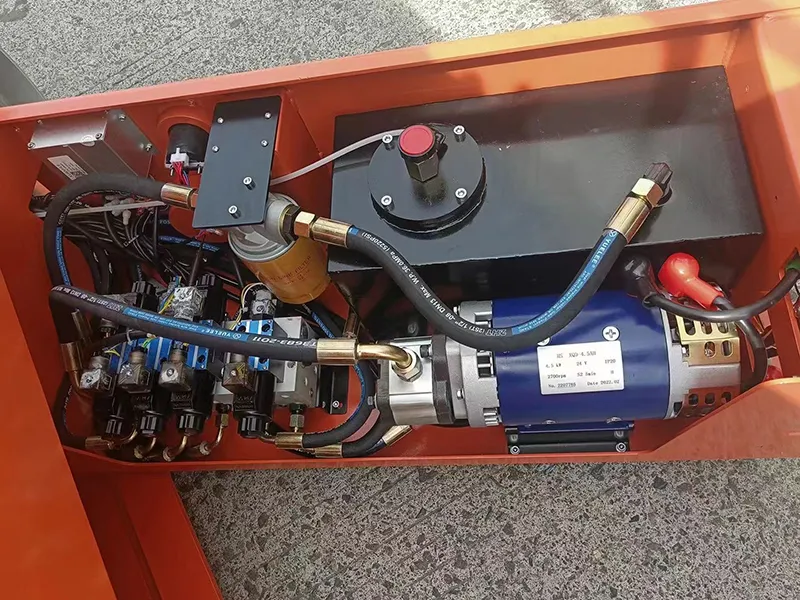

The motor and hydraulic pump unit with valve are housed in the same compartment, ensuring easy access for maintenance and operation.

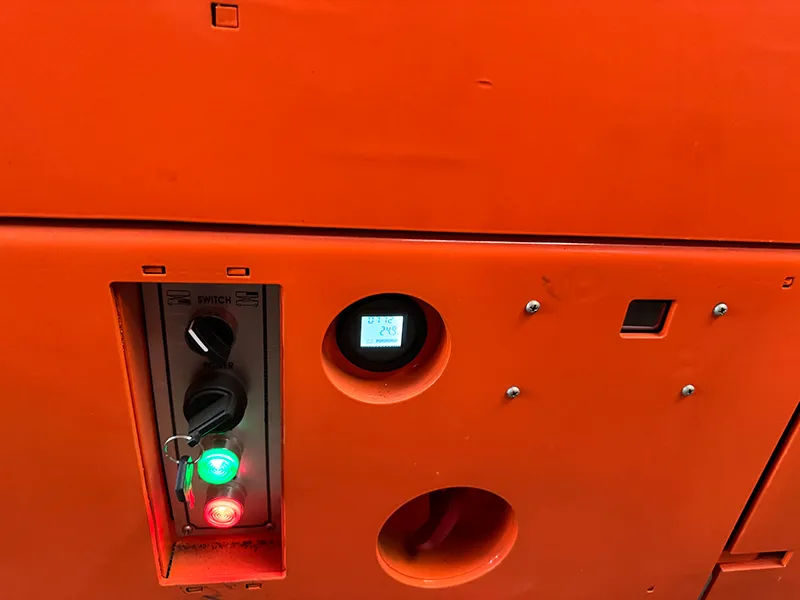

Lower control panel features an emergency lowering valve, battery meter, and power display

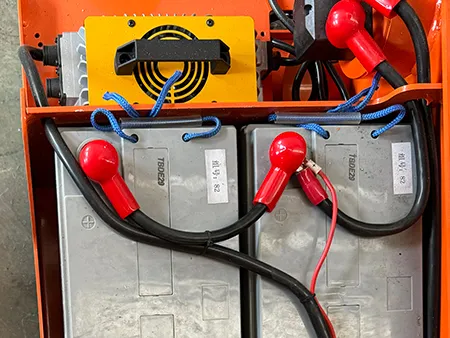

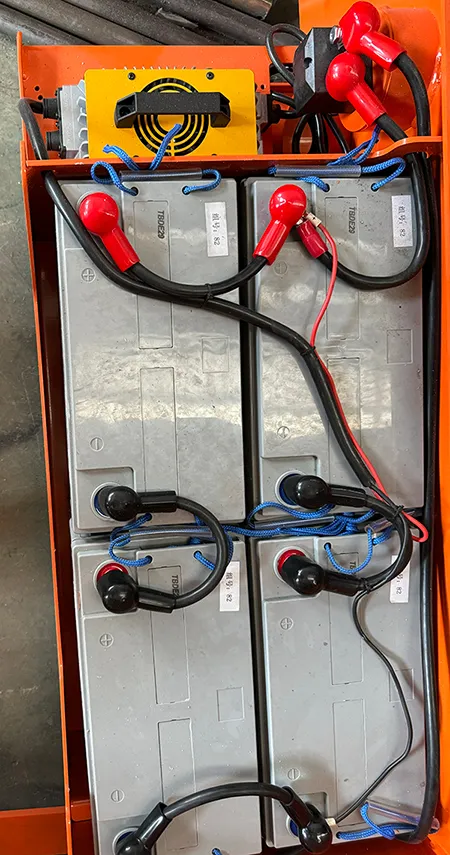

Battery and charger are organized in the same compartment
