Mini Scissor Lift | Compact Aerial Work Platform

SJY Aerial Work Platform

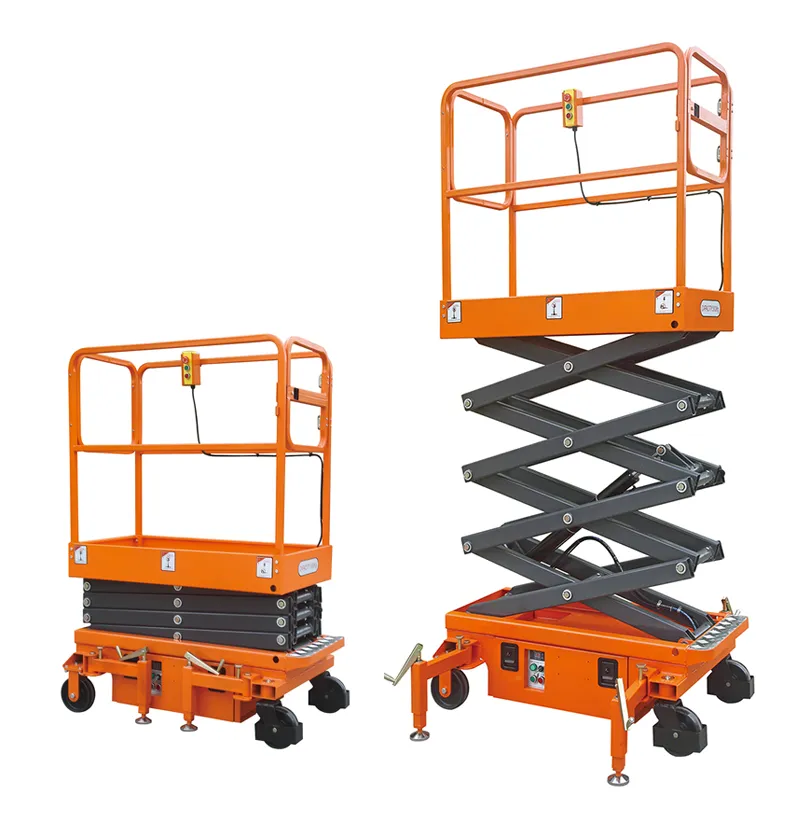

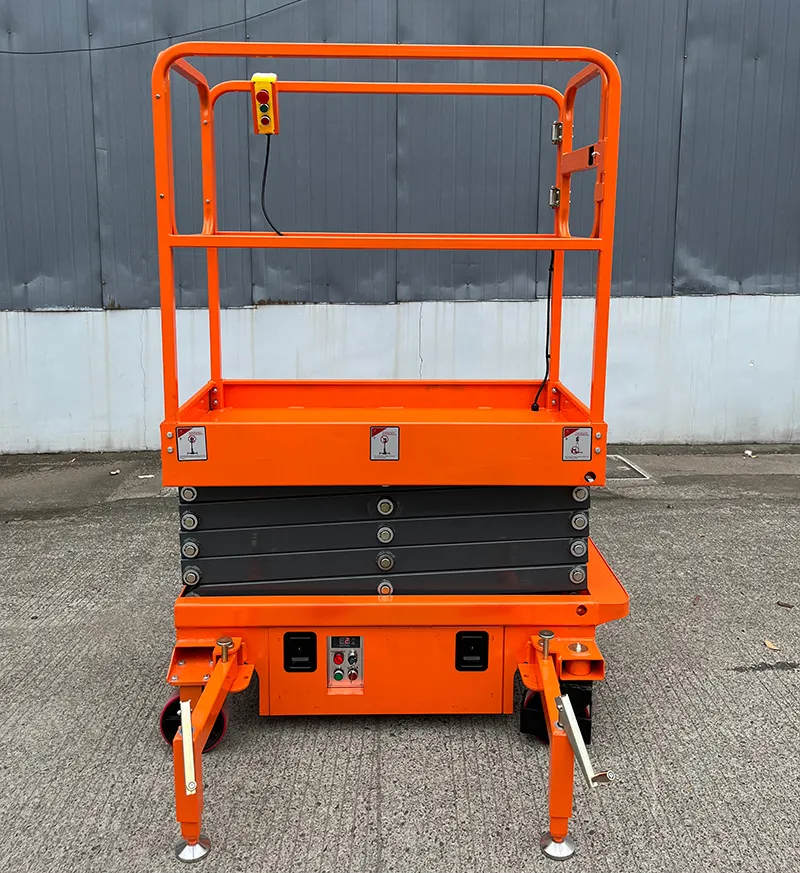

Mini Push Around Scissor Lift

Mobile elevating work platform with 300kg capacity, up to 4800mm platform height

Compact and versatile, this mini push-around scissor lift delivers exceptional stability and adaptability, making it a reliable choice for high-altitude tasks. Developed by incorporating the advantages of similar products from domestic and international markets, this lift is ideal for indoor operations requiring high mobility and flexibility. Its compact size allows for greater usability in a wide range of settings. The lift is constructed with five main components: the work platform, scissor arms, lift cylinders, hydraulic control system, and base frame.

300kg
4800mm

Request a Quote

Specifications

Model Number	Unit	SJY0.3-3	SJY0.3-3.9	SJY0.3-4.8
Rated Lift Capacity	kg	300	300	300
Max. Platform Height	mm	3000	3900	4800
Min. Platform Height	mm	630	700	830
Platform Size	mm	1170×600	1170×600	1170×600
Lifting Time	sec	33	33	33
Lowering Time	sec	30	30	30
Lifting Motor	V/kW	12/0.8	12/0.8	12/0.8
Charger	V/A	12/10	12/10	12/10
Overall Length	mm	1300	1300	1300
Overall Width	mm	740	740	740
Overall Height	mm	1700	1800	1930
Overall Net Weight	kg	360	420	475
Battery	V/A	12/60	12/60	12/60

Features

The pump unit, charger, battery, and lower control panel are housed in a single compartment for easy access, making battery replacement and component maintenance convenient.
The charger plug features a detachable design, allowing for easy replacement with various standards such as GB, UK, and Australian plugs.
The steel structure offers a higher safety and stability factor compared to similar products, ensuring longer equipment lifespan.

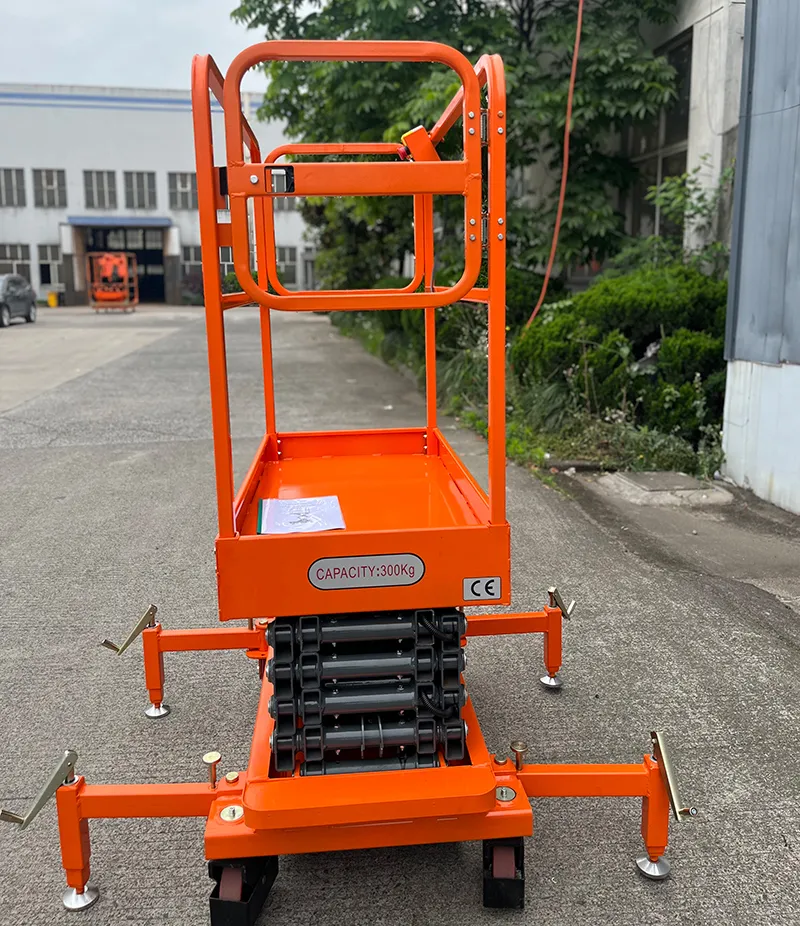

Some models include side outriggers, which can be deployed for enhanced safety and stability during operation.

Applications

The mini push Around scissor lift is versatile and widely used for:

Glass curtain wall installation and cleaning
Indoor ceiling installation and maintenance
Indoor lighting fixture installation and repair
Gardening and orchard picking tasks

Detail Features

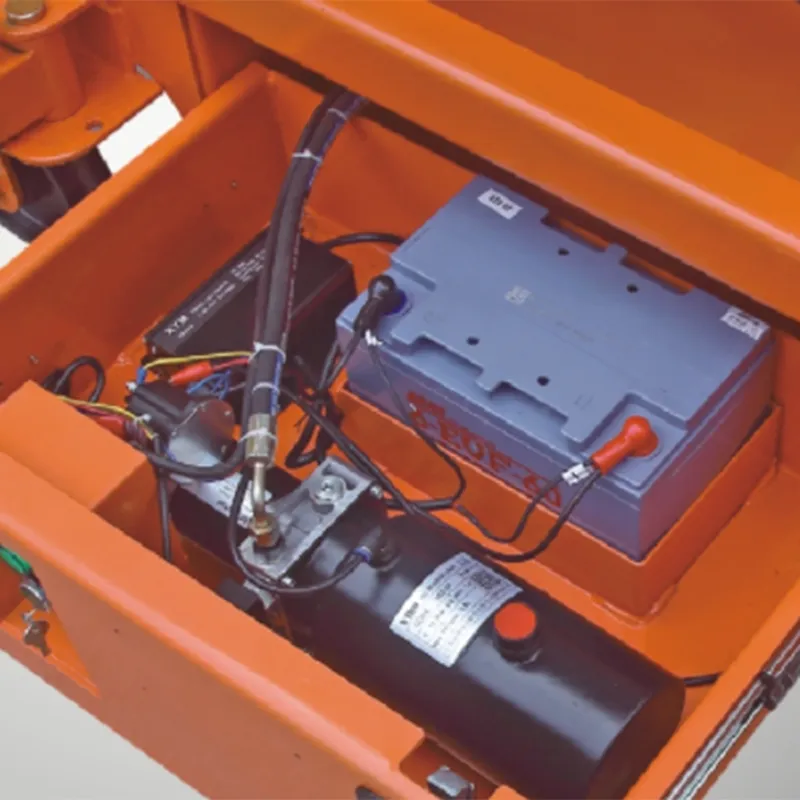

All components in one compartment

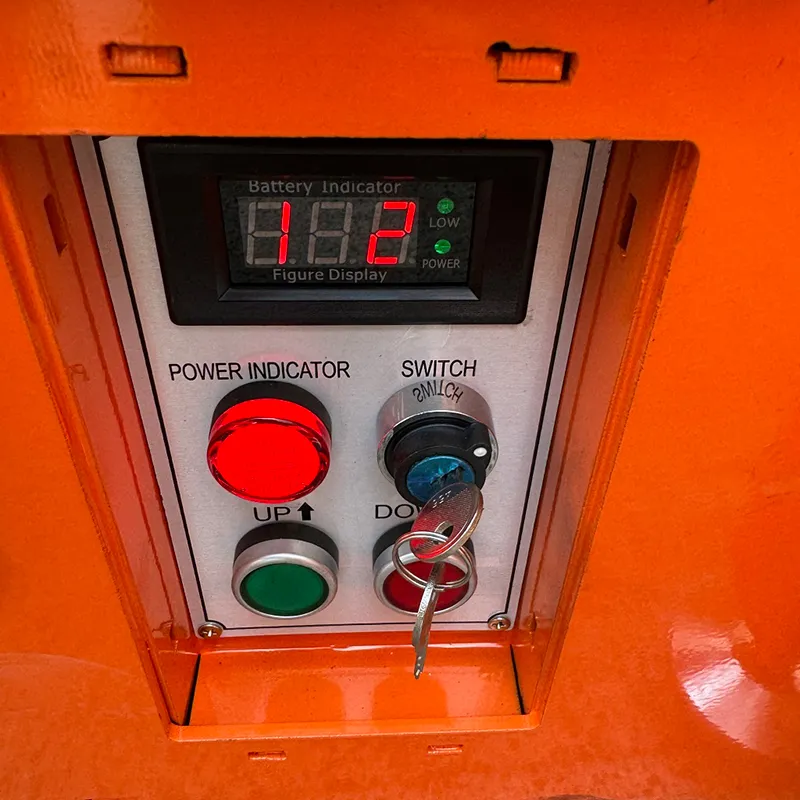

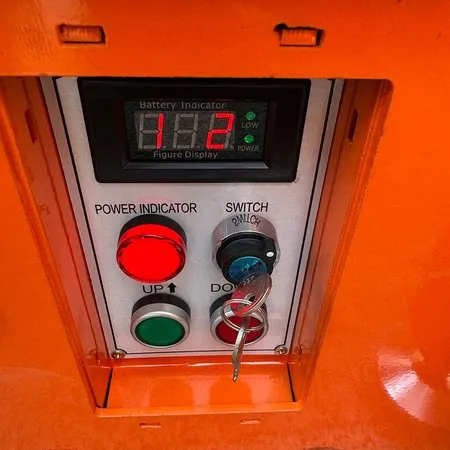

Lower control panel

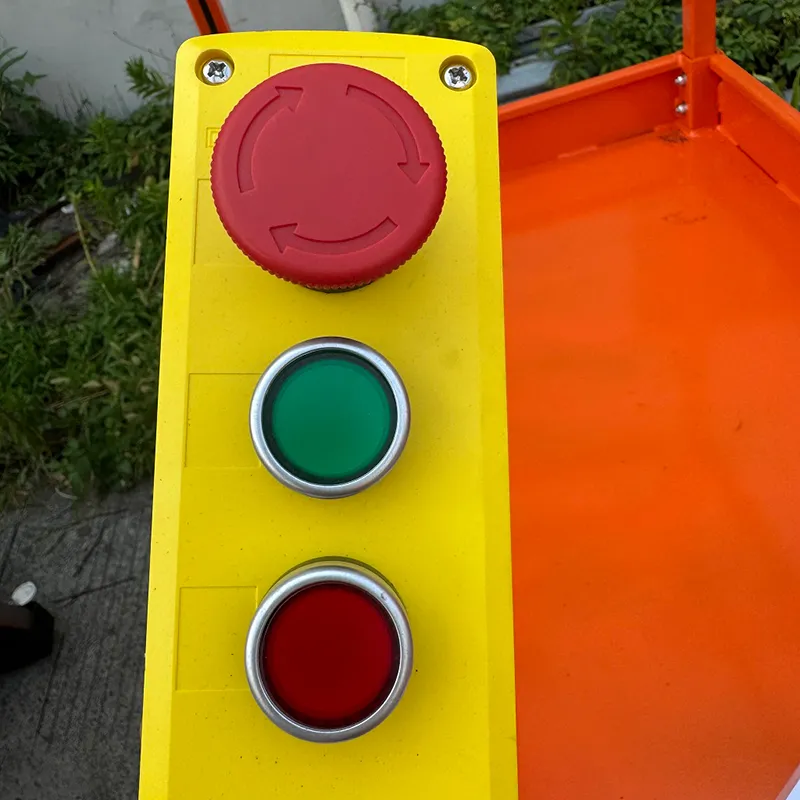

Upper control box
