Push Around Vertical Mast Lift | Single Mast Vertical Lift

Home
Products
Aerial Work Platforms
Push Around Vertical Mast Lift (Single Mast)

AWP Aerial Work Platform

Push Around Vertical Mast Lift (Single Mast)

Aluminium alloy aerial lift platform with 150/125kg capacity, up to 11700mm working height

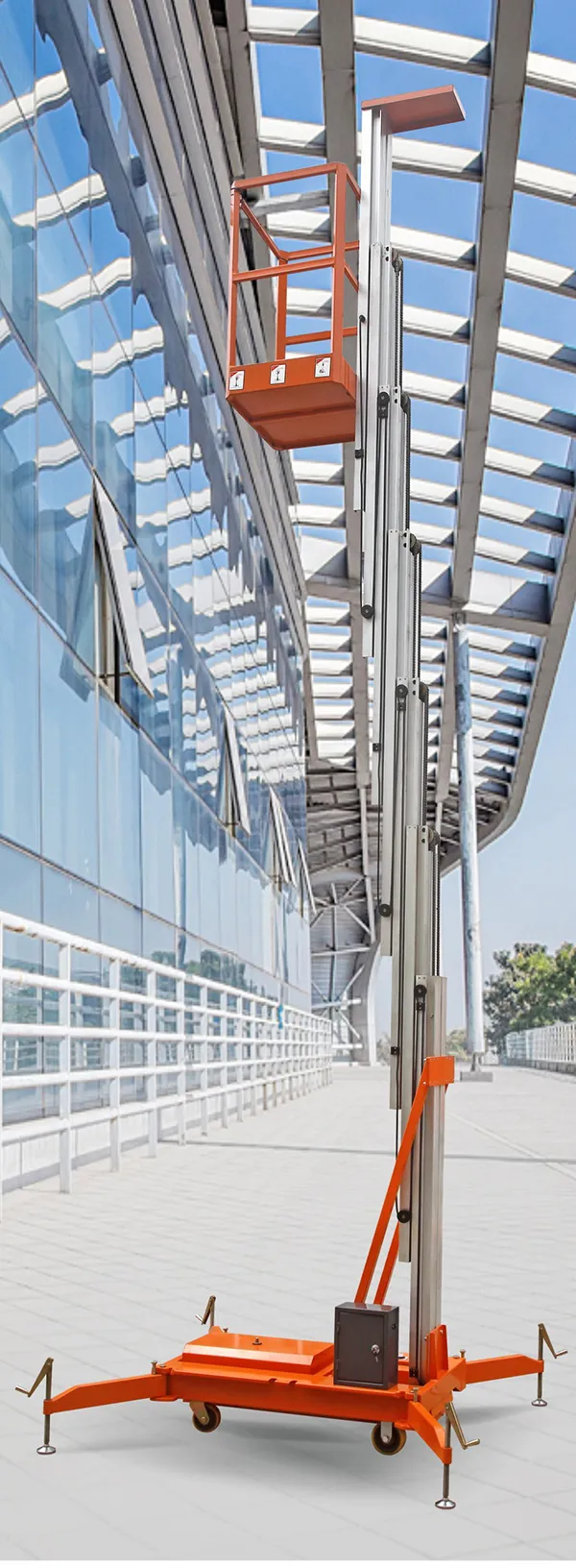

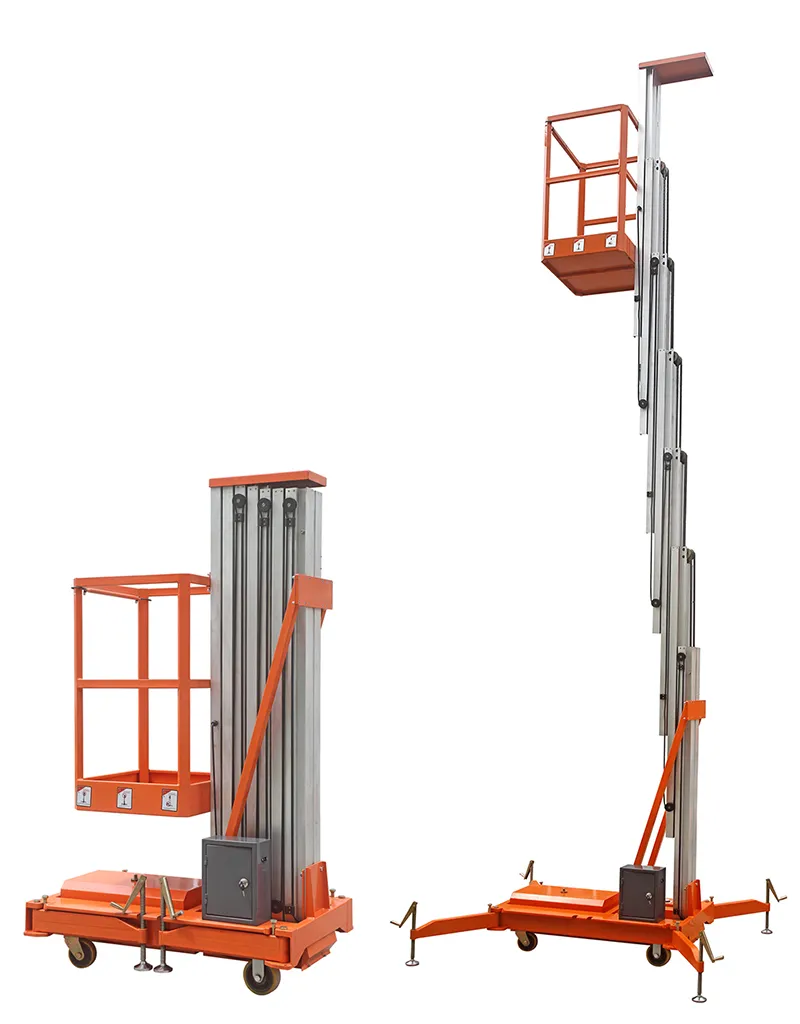

The single mast vertical Lift is designed for lightweight, compact, and reliable high-altitude operations. Constructed with high-strength aluminum alloy and powered by a hydraulic pump-driven chain system, it provides smooth and balanced elevation while maintaining excellent load-bearing capacity. With its compact structure and small size in transport mode, this push around lift is ideal for single-operator tasks in electric equipment maintenance, communications facility installation, airport cleaning, exhibition lighting system setup, and banner hanging.

150/125kg
11700mm

Request a Quote

Specifications

Model Number	Unit	AWP6-1000	AWP8-1000	AWP10-1000
Max. Platform Height	mm	6000	8000	10000
Working Height	mm	7700	9700	11700
Ground Clearance	mm	80	80	80
Rated Lift Capacity	kg	150	125	125
Platform Size	mm	650×600
Outrigger Footprint Size	mm	1930×1770
Power Source	V (AC)	220
Power Source	V (DC)	24
Battery	V/Ah	2×12/60
Charger	V/A	24/10
Lifting Motor	V/kW (AC)	220/0.75
Lifting Motor	V/kW (DC)	24/1.2
Overall Length	mm	1330
Overall Width	mm	800
Overall Height	mm	1950	2050	2150
Overall Net Weight	kg (AC)	300	350	400
Overall Net Weight	kg (DC)	330	380	430

Features

Specially designed guide wheels between the masts ensure stable and smooth lifting.
Its compact design and small dimensions in transport mode allow it to fit into standard elevator cabins and pass-through doorways and narrow passages with ease.
Dual-protection outriggers provide added stability and safety during operations and allow close access to the work surface for efficient tasks.
