Push Around Vertical Mast Lift | Aerial Work Platform

AWP Aerial Work Platform

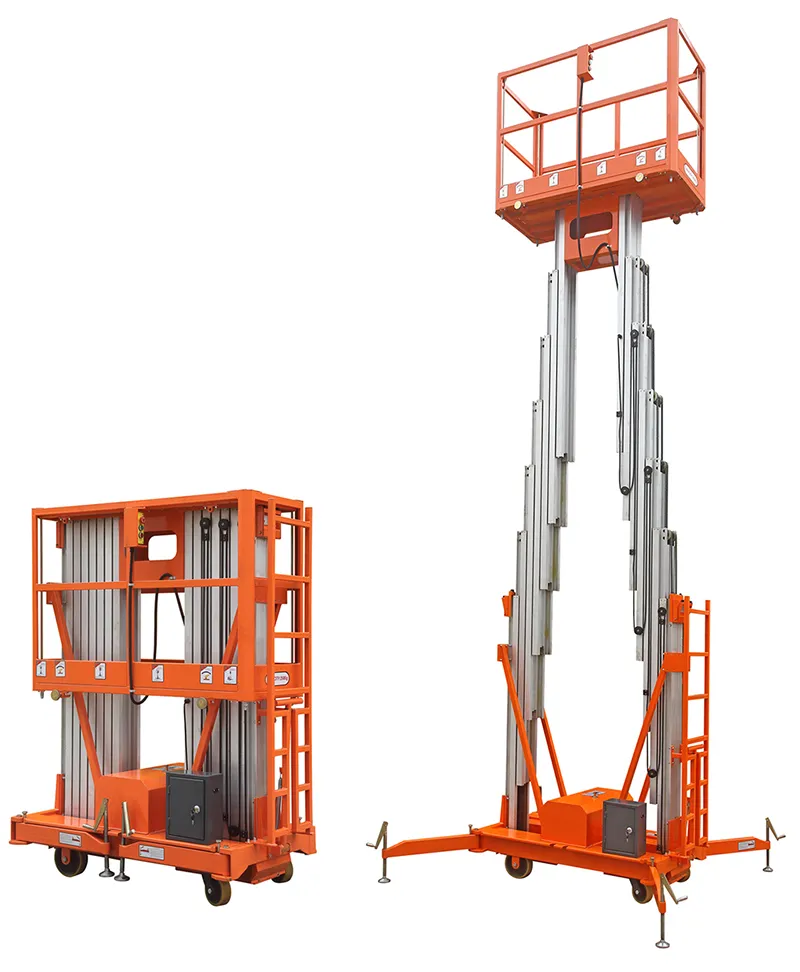

Push Around Vertical Mast Lift (Double Mast)

Aluminium alloy aerial lift platform with 200/250/300kg capacity, up to 13700mm working height

This push around vertical lift is crafted from high-strength aluminum profiles, ensuring minimal deflection and sway during use. With its double-mast structure, this vertical mast lift offers enhanced load capacity, a spacious platform, and excellent stability, making it a reliable choice for a variety of tasks. Virtually eliminating the need for scaffolding or ladders, its lightweight and compact design allow it to operate effectively in tight spaces, making it easy to maneuver and push as needed. This lift is widely used in factories, hotels, high-rise buildings, malls, stations, airports, and stadiums, serving applications such as electrical line installations, lighting maintenance, overhead pipework, and high-altitude cleaning tasks.

200/250/300kg
13700mm

Request a Quote

Specifications

Model Number	Unit	AWP6-2000	AWP8-2000	AWP10-2000	AWP12-2000
Max. Platform Height	mm	6000	8000	10000	12000
Working Height	mm	7700	9700	11700	13700
Ground Clearance	mm	80	80	80	80
Rated Lift Capacity	kg	300	300	250	200
Platform Size	mm	1500×600	1500×600	1620×600	1740×600
Outrigger Footprint Size	mm	1950×1850	1950×1850	2130×1980	2550×2500
Power Source	V (AC)	220
Power Source	V (DC)	24
Battery	V/Ah	2×12/60
Charger	V/A	24/10
Lifting Motor	AC (V) V/kW (AC)	220/1.5
Lifting Motor	DC (V) V/kW (DC)	24/2.2
Overall Length	mm	1790	1790	1790	1790
Overall Width	mm	900	900	900	900
Overall Height	mm	1970	1970	2070	2070
Overall Net Weight	kg (AC)	480	580	680	780
Overall Net Weight	kg (DC)	510	610	710	810

Features

Versatility: Adjustable outriggers enable use on stairs, steps, and uneven terrain. Equipped with polyurethane caster wheels, it prevents damage to delicate surfaces like marble, wood floors, or grass and can easily pass through narrow spaces such as elevators and doorways.
Lightweight and portable: Made with durable aluminum alloy, the lift is lightweight, making it easy to transport and store. Four polyurethane caster wheels provide effortless mobility without causing surface damage.
Stable structure: Its components are connected with high-strength fixtures, supported by scientifically designed support structures that ensure overall safety, stability, and reliability during operation.
