Electric Aerial Order Picker | Material Handling Equipment

Electric Aerial Order Picker (Hydraulic Steering)

FSEP-YZ Material Handling Equipment

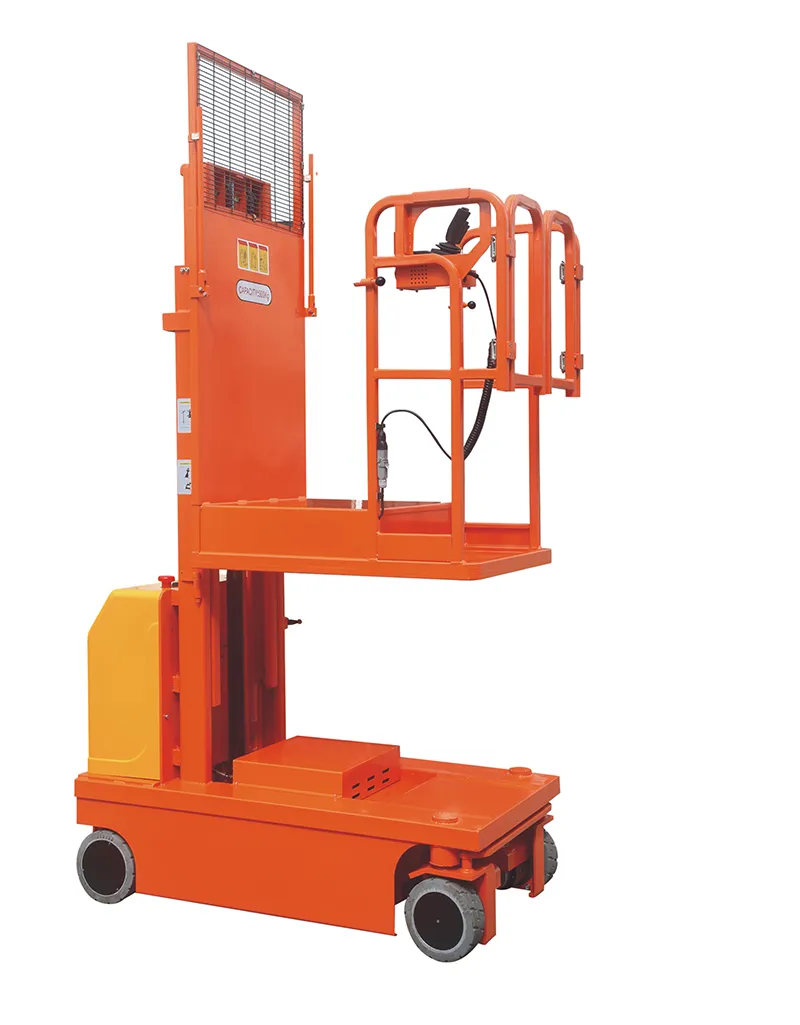

Electric Aerial Order Picker with Hydraulic Steering

Drivable stock picker with 600×700 platform, 300kg capacity, up to 6000mm working height

The hydraulic steering electric aerial order picker is a personnel lift designed to offer flexibility and efficiency across a wide range of indoor applications, including warehousing, retail outlets, and factory shelving systems. Its full electric drive enhances operational efficiency by allowing single-operator use, eliminating the need for two people to retrieve items from elevated positions. With its ultra-compact design but 300kg load capacity, this material handling equipment provides additional reach and a loading platform for effective retrieval and storage of goods, making it an indispensable tool for environments requiring a picking height of up to 6 meters.

300kg
6000mm

Request a Quote

Specifications

Model Number		FSEP3-2.7-YZ	FSEP3-3.0-YZ	FSEP3-4.0-YZ	FSEP3-4.5-YZ
Max. Platform Height (H)	mm	2700	3000	4000	4500
Max. Working Height (H1)	mm	4000	4450	5000	6000
Ground Clearance (H2)	mm	45	45	45	45
Rated Lift Capacity	kg	300	300	300	300
Platform Size	mm	600×700	600×700	600×700	600×700
Max. Drive Speed (Platform Stowed)	km/h	4	4	4	4
Max. Drive Speed (Platform Elevated)	km/h	1.6	1.6	1.6	1.6
Min. Turning Radius	mm	1600	1600	1690	1690
Max. Gradeability	%	15-20	15-20	15-20	15-20
Driving Wheel Size	mm	Ø230×80	Ø230×80	Ø230×80	Ø230×80
Caster Size	mm	Ø230×80	Ø230×80	Ø230×80	Ø230×80
Driving Motor	V/kW	2×24/0.4	2×24/0.4	2×24/0.4	2×24/0.4
Lifting Motor	V/kW	24/1.2	24/1.2	24/1.2	24/1.2
Aneroid Battery	V/Ah	2×12/100	2×12/100	2×12/100	2×12/100
Charger	V/A	24/15	24/15	24/15	24/15
Overall Length (A)	mm	1540	1540	1620	1620
Overall Width (B)	mm	760	760	760	760
Overall Height (C)	mm	1900	2050	1920	2080
Overall Net Weight	kg	600	620	830	850

Electric Aerial Order Picker with Hydraulic Steering

Features

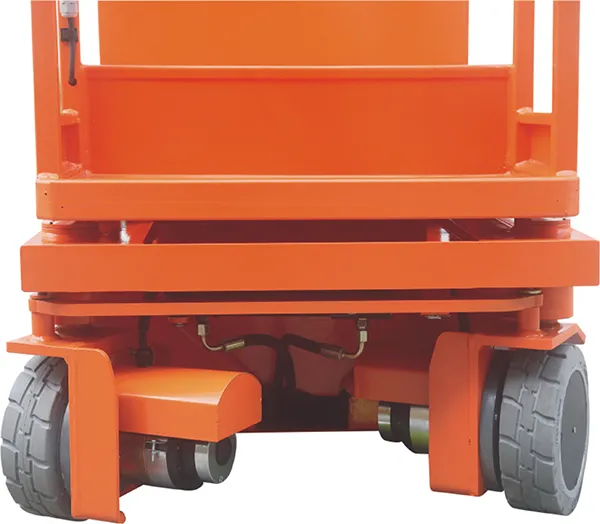

A spacious platform accommodates a variety of goods, enhancing adaptability for different operational needs.
Tilt sensor ensures safety by preventing over-tilt during elevation.
Built-in standard forklift pockets facilitate easy transportation of the order picker.
Hydraulic steering system allows for precise movement and control without the need for outriggers, enabling the lift to travel while elevated.
Packed with advanced features, this electric aerial order picker is a perfect addition to warehouses, offering enhanced productivity and safe operation.
