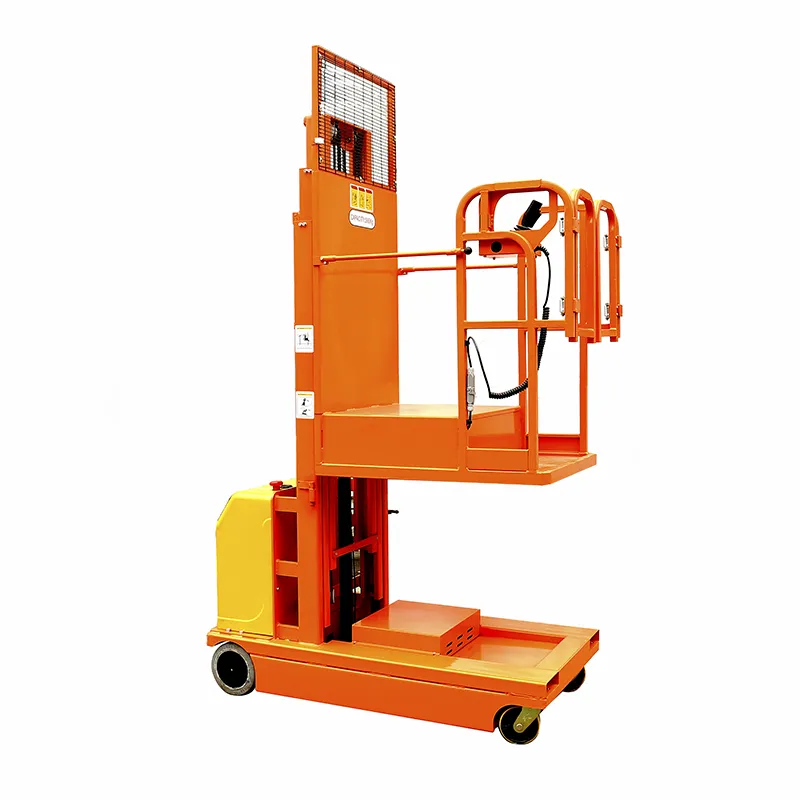

Fully Electric Aerial Order Picker

FSEP Material Handling Equipment

Drivable stock picker with 600×700 platform, 300kg capacity, up to 6000mm working height

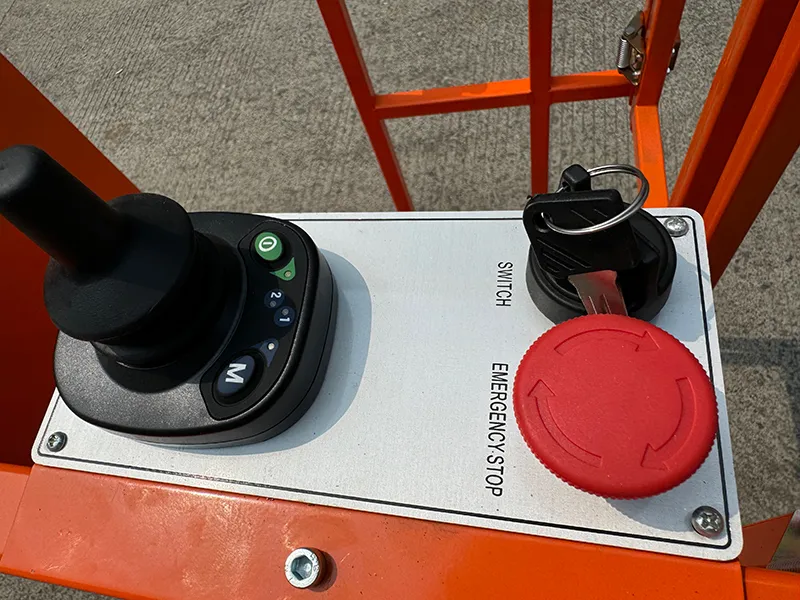

The self-propelled fully electric aerial order picker is a highly efficient material handling solution widely used in warehouses and supermarkets. Designed for order picking tasks, it allows operators to stand on the platform and control all movements, including lifting, driving, turning, and steering, directly from the control panel. With both mobility and elevation powered by a battery, this picker significantly enhances operational efficiency. Offering a safer alternative to manual portable steps, this load lifting equipment is an ideal choice for companies prioritizing efficiency and space-saving solutions.

This drivable stock picker is able to handle up to a 300 kg load at a maximum picking height of up to 6000 mm.

300kg
6000mm

Request a Quote

Specifications

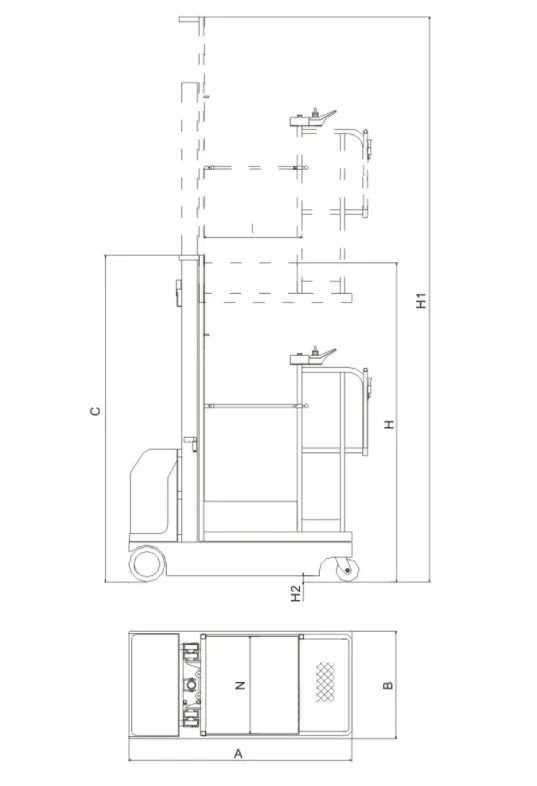

Model Number		FSEP3-2.7	FSEP3-3.3	FSEP3-4.0	FSEP3-4.5
Max. Platform Height (H)	mm	2700	3300	4000	4500
Max. Working Height (H1)	mm	4020	4900	5310	6000
Ground Clearance (H2)	mm	40	40	40	40
Rated Lift Capacity	kg	300	300	300	300
Platform Size	mm	600×700	600×700	600×700	600×700
Max. Drive Speed (Platform Stowed)	km/h	4	4	4	4
Max. Drive Speed (Platform Elevated)	km/h	1.6	1.6	1.6	1.6
Min. Turning Radius	mm	1600	1600	1600	1600
Max. Gradeability	%	15-20	15-20	15-20	15-20
Driving Wheel Size	mm	Ø230×80	Ø230×80	Ø230×80	Ø230×80
Caster Size	mm	Ø150×40	Ø150×40	Ø150×40	Ø150×40
Driving Motor	V/kW	2×24/0.4	2×24/0.4	2×24/0.4	2×24/0.4
Lifting Motor	V/kW	2×12/1.2	2×12/1.2	2×12/1.2	2×12/1.2
Aneroid Battery	V/Ah	2×12/100	2×12/100	2×12/100	2×12/100
Charger	V/A	24/15	24/15	24/15	24/15
Overall Length (A)	mm	1530	1530	1620	1620
Overall Width (B)	mm	760	760	760	760
Overall Height (C)	mm	1830	2130	1840	2000
Overall Net Weight	kg	430	450	660	680

Features

High-powered hydraulic lifting pump ensures smooth and reliable elevation.
Features a high-capacity maintenance-free battery pack for extended operation.
Two-wheel drive system provides superior traction and stability.
Easy-to-control steering system
Automatically adjusts speed relative to elevation for added safety
Emergency lowering valve
Compact design to navigate through narrow passages and low-clearance doorways with ease

Standard Features

Manual emergency lowering system
Forklift pockets
Emergency stop switch
Speed control in proportion to the elevation height
