Fully Electric Stacker

Request a Quote

FSEM Material Handling Equipment

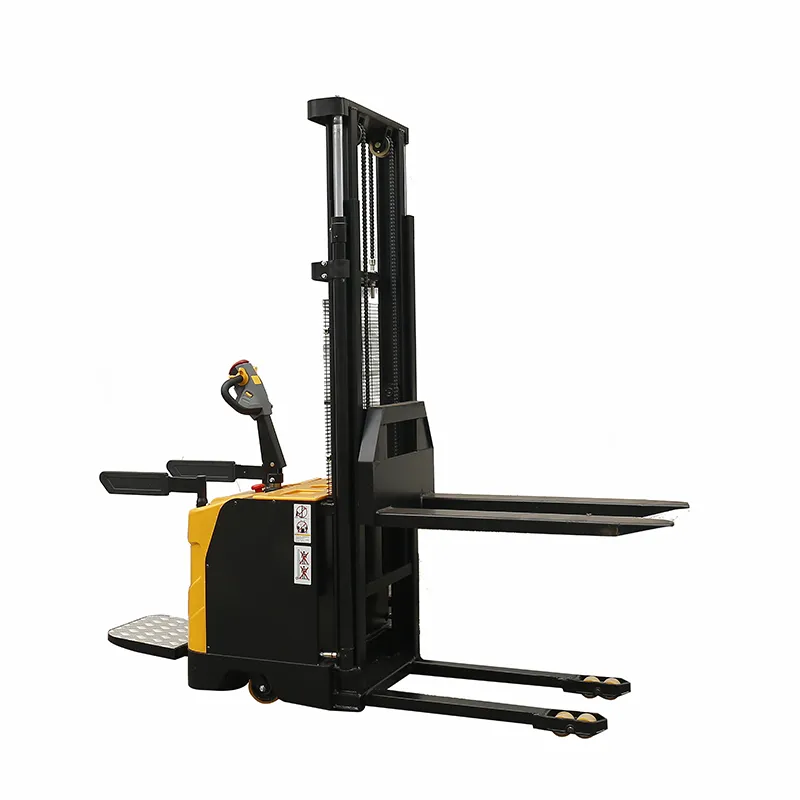

Fully powered straddle stacker with 1500/2000kg capacity, up to 3500mm lifting height

Designed for light to medium-duty warehouse tasks, this stacker is a comprehensive choice for general material handling, stacking, and work positioning. The fully electric stacker is a versatile and efficient solution for indoor load handling, offering both powered lifting and travel. Its compact design ensures excellent maneuverability, making it particularly effective in tight and narrow racking spaces. Whether for small warehouses, production facilities, or retail environments, the fully electric stacker provides an optimal balance of efficiency and practicality, improving workflows in any logistical area.

Applications

A reliable option for light and medium-duty tasks such as stacking, material handling, and positioning within warehouses.
Ideal for confined spaces, where its compact size enhances maneuverability and operational precision.
Perfect for daily operations in environments like small warehouses, retail outlets, and production settings, especially in areas with limited height clearance.

1500/2000kg
3500mm

Specifications

Model Number		FSEM20-16	FSEM15-25	FSEM15-30	FSEM15-35	FSEM20-20
Rated Capacity (Q)	kg	2000	1500	1500	1500	2000
Load Center (C)	mm	500	500	500	500	500
Max. Fork Height (H3)	mm	1600	2500	3000	3500	2000
Max. Machine Height (H4)	mm	2100	3060	3560	4060	2560
Handle Height (H2)	mm	1450-1460
Fork Size (l×n)	mm	1150×160
Overall Fork Width (E)	mm	570(680)
Min. Turning Radius (Wa)	mm	1620
Wheel Base (Y)	mm	1340
Front-Wheel Distance (X)	mm	339
Max. Travel Speed (No Load)	km/h	4.5-6
Max. Travel Speed (Full Load)	km/h	4-5
Max. Gradeability	%	8-10
Driving Motor	V/kW	24/1.2
Lifting Motor	V/kW	24/2-3
Battery	V/Ah	12×2/210
Charger	V/A	24/20-30
Overall Length (L)	mm	2100	2140	2140	2140	2140
Overall Width (W)	mm	830
Overall Height (H1)	mm	2160	1840	2090	2340	1590
Overall Net Weight	kg	840	970	1070	1170	890
