Manual Stacker | Single Frame Hand Pallet Stacker

MS Material Handling Equipment

Manual Stacker (Single Frame)

Hand pallet stacker with 1000/2000kg capacity, up to 1600mm lifting height

Widely used in warehouses, factories, and industrial settings, the single-frame manual stacker offers a reliable and efficient solution for material handling needs. This versatile equipment is designed to perform quick and accurate goods handling and stacking, enhancing operational efficiency while ensuring safety and ease of use.

1000/2000kg
1600mm

Request a Quote

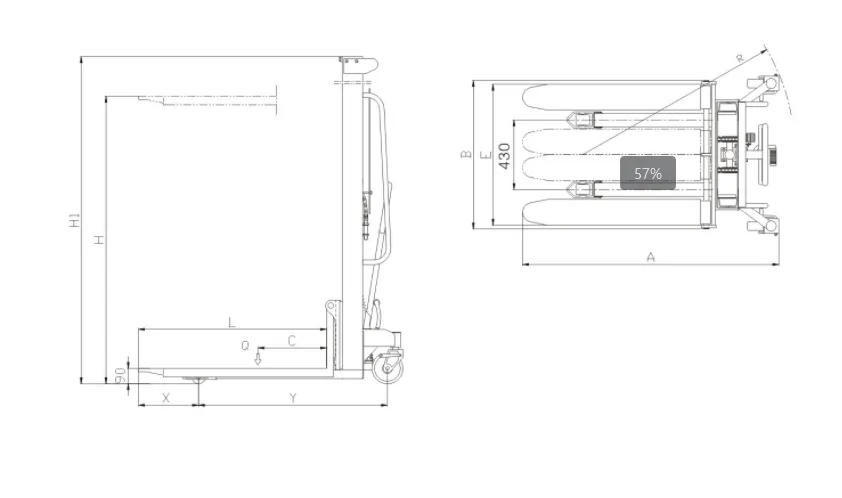

Specifications

Model Number		MS10-16	MS20-16
Rated Capacity (Q)	kg	1000	2000
Load Center (C)	mm	400	400
Min. Fork Height	mm	90	90
Max. Fork Height (H)	mm	1600	1600
Fork Length (L)	mm	1150	1150
Overall Fork Width (E)	mm	300-850	320-850
Min. Turning Radius (R)	mm	1250	1250
Wheel Base (Y)	mm	1100	1100
Front-Wheel Distance (X)	mm	178	178
Overall Length (A)	mm	1600	1600
Overall Width (B)	mm	850	850
Overall Height (H1)	mm	2100	2100
Overall Net Weight	kg	255	290

Features

Mast made from high-quality grooved steel ensuring safety and long-lasting durability

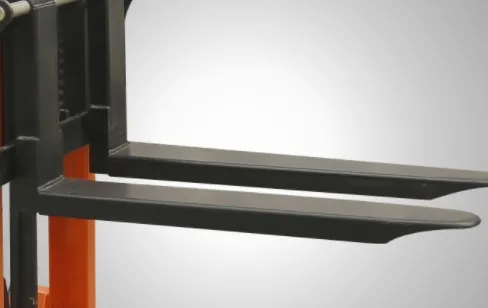

Optional adjustable fork width ranging from 320mm to 850mm to handle various pallet sizes
Lightweight and innovative structure allows for easy maneuverability and operation
Equipped with a safety device to prevent rapid, unintended lowering
