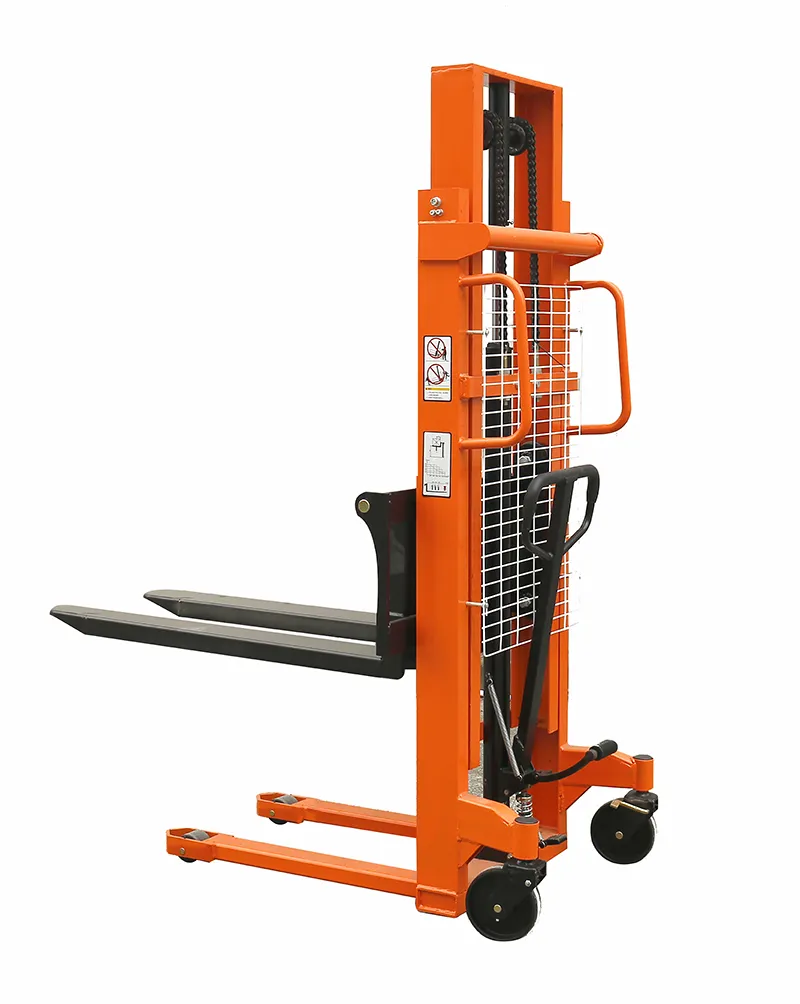

Manual Stacker (Double Frame)

Hand pallet stacker with 1000kg capacity, up to 3000mm lifting height

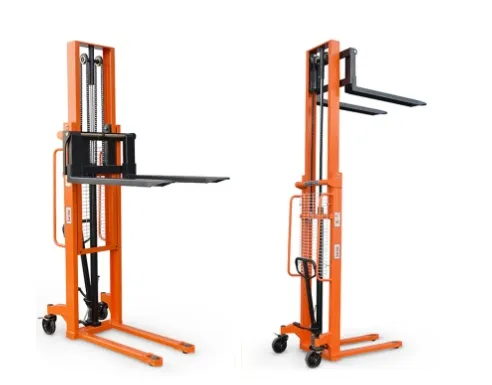

The double frame manual stacker is designed for reliable and efficient material handling with a double-mast structure. This stacker features smooth lifting, a compact build, and flexible operation, making it ideal for diverse industrial and warehouse applications. With a maximum lifting height of 3 meters, it provides enhanced functionality for high-stacking tasks. Its safety-focused design includes a burst-protection valve to prevent sudden lowering in case of hydraulic system failure.

1000kg
3000mm

Request a Quote

Specifications

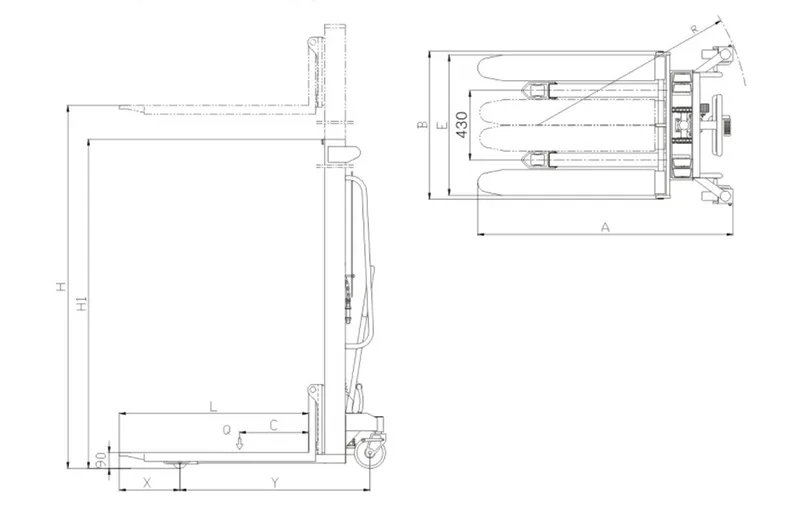

Model Number		MS10-20	MS10-25	MS10-30
Rated Capacity (Q)	kg	1000	1000	1000
Load Center (C)	mm	400	400	400
Min. Fork Height	mm	90	90	90
Max. Fork Height (H)	mm	2000	2500	3000
Fork Length (L)	mm	1150	1150	1150
Overall Fork Width (E)	mm	300-850	320-850	320-850
Min. Turning Radius (R)	mm	1250	1250	1250
Wheel Base (Y)	mm	1100	1100	1100
Front-Wheel Distance (X)	mm	210	210	210
Overall Length (A)	mm	1600	1600	1600
Overall Width (B)	mm	850	850	850
Overall Height (H1)	mm	1560	1810	2060
Overall Net Weight	kg	340	355	370

Features

Mast made from high-quality grooved steel ensuring safety and long-lasting durability

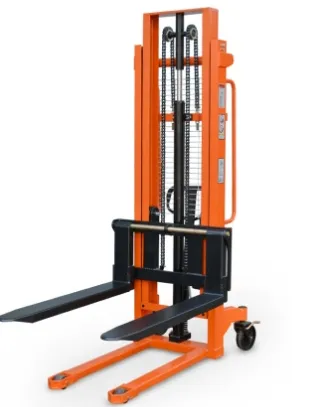

Optional adjustable fork width ranging from 320mm to 850mm, accommodating various pallet sizes
Double-mast design offers stable and smooth lifting for high-reaching tasks.
Equipped with a burst valve to prevent unexpected rapid lowering
