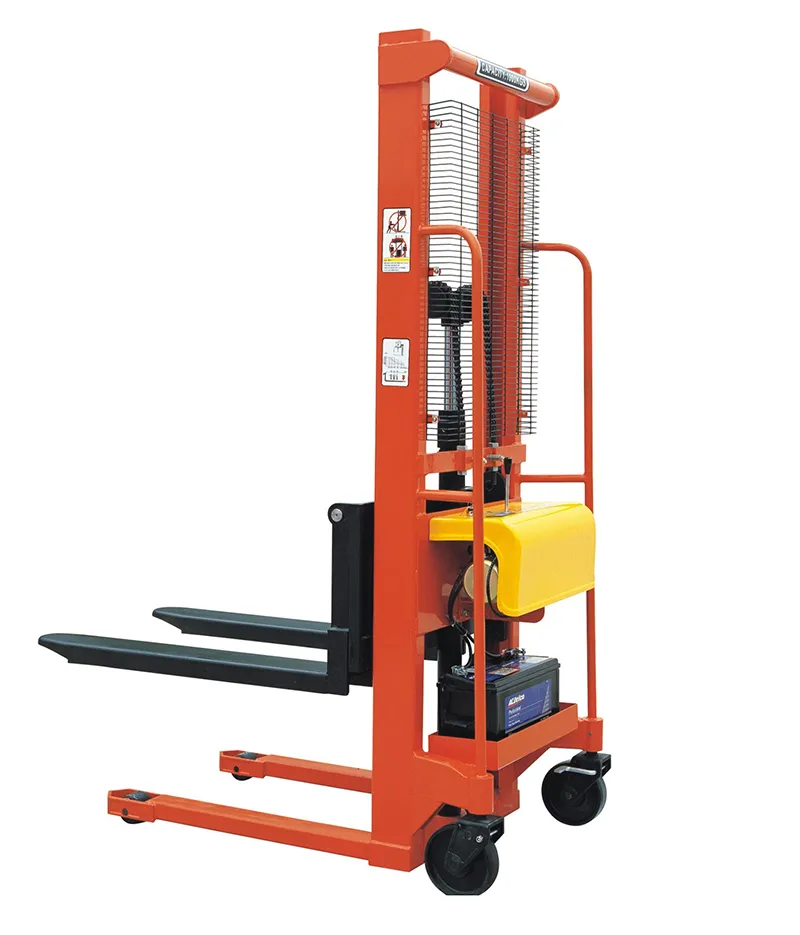

Semi-Electric Walkie Stacker

Home
Products
Stackers
Semi-Electric Walkie Stacker

FSEM Material Handling Equipment

Push straddle stacker with 1000kg capacity, up to 1600mm lifting height

The semi-electric walkie stacker features an electric lifting function while requiring manual effort for movement. Designed for low-intensity, short-distance transport tasks, this stacker is ideal for applications such as loading and unloading trucks, stacking warehouse shelves, and small-range item retrieval. With a maximum lifting height of 1.6 meters, it is a cost-effective solution for businesses needing reliable performance for compact, localized operations.

1000kg
1600mm

Request a Quote

Specifications

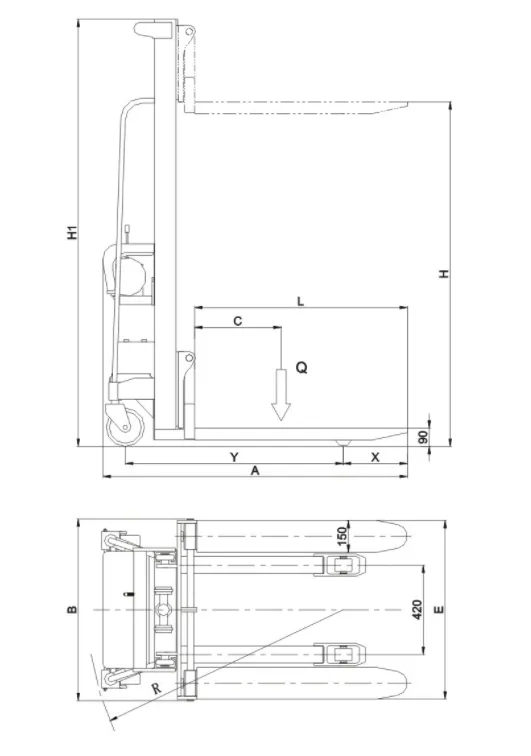

Models	JSEM10-16	Front-Wheel Distance (X)	300 mm
Rated Capacity (Q)	1000 kg	Lifting Motor	12/1.5 V/kW
Load Center (C)	400 mm	Battery	12/2000 V/Ah
Max. Fork Height (H)	1600 mm	Charger	12/15 V/A
Fork Length (L)	1000 mm	Overall Length (A)	1500 mm
Overall Fork Width (E)	300-850 mm	Overall Width (B)	850 mm
Min. Turning Radius (R)	1350 mm	Overall Height (H1)	2010 mm
Wheel Base (Y)	1025 mm	Overall Net Weight	275 kg

Features

High-quality hydraulic pump offers smooth and efficient lifting with minimal effort.
Made from high-grade cold-drawn seamless steel pipes with chrome plating for rust resistance and long-term durability.
Maintenance-free battery reduces maintenance time and costs, provides lasting power, and includes a battery level display for convenience.
