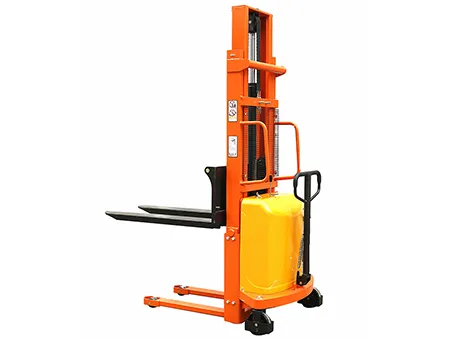

Semi-Electric Stacker

SEM Material Handling Equipment

Straddle leg stacker with 1000/2000kg capacity, up to 1600mm lifting height

The semi-electric stacker combines electric lifting with manual maneuvering, offering an eco-friendly and efficient solution for pallet stacking and transport. This versatile stacker is widely used for elevated pallet stacking and movement in factories, warehouses, and logistics centers. It is effective in narrow aisles, mezzanines, and high-bay warehouses, where its quiet operation, maneuverability, and environmentally friendly design excel. The stacker ensures both safety and efficiency, making it a reliable aerialchoice for unitized pallet handling in demanding workspaces.

1000/2000kg
1600mm

Request a Quote

Specifications

Model Number		SEM10-16	SEM20-16
Rated Capacity (Q)	kg	1000	2000
Load Center (C)	mm	400	400
Max. Fork Height (H)	mm	1600	1600
Fork Length (L)	mm	1150	1150
Overall Fork Width (E)	mm	300-850	320-850
Min. Turning Radius (R)	mm	1350
Wheel Base (Y)	mm	1180
Front-Wheel Distance (X)	mm	322
Lifting Motor	V/kW	12/1.6
Battery	V/Ah	12/2020
Charger	V/A	12/15
Overall Length (A)	mm	1800
Overall Width (B)	mm	865
Overall Height (H1)	mm	2060
Overall Net Weight	kg	350	390

Features

High-quality hydraulic pump delivers strong power and smooth operation with long-lasting performance, ensuring ease of use
Heavy-duty C-type steel mast manufactured with advanced rolling processes for enhanced durability and safety
Durable fork design made from integrally stamped steel plates, combining aesthetic appeal with excellent functionality
Innovative rear axle structure improves the overall structural integrity of the stacker for more efficient performance.
Foot-operated lightweight design reduces push and pull effort, offering greater flexibility and ease of use.
Reliable braking system enhances safety during real-world operations, ensuring secure handling.
Linkage structure extends the service life by distributing operational loads evenly, while simplifying maintenance and reducing downtime and operational costs.
