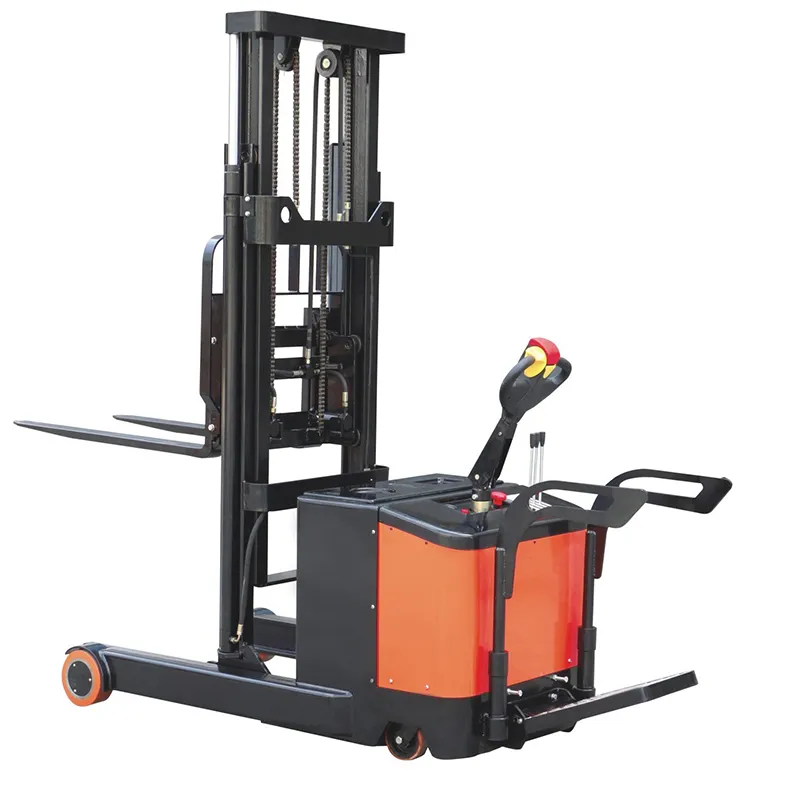

Engineered to maximize operator comfort and safety, the reach truck ensures productivity and efficiency by reducing fatigue during long shifts. Its ability to maneuver in tight spaces enables easy access to inventory without consuming excess floor space, making it an ideal companion for modern, space-conscious warehouses.
Delivering unmatched efficiency and performance, this reach truck combines innovative features with proven reliability and ergonomic design, catering to the most demanding material handling needs. Its application extends across industries such as petroleum, chemicals, pharmaceuticals, textiles, military, coatings, pigments, and coal, as well as ports, railways, freight yards, and containers. Capable of operating in challenging environments, it can safely perform tasks like pallet loading, unloading, and transport, even in areas with explosive mixtures.

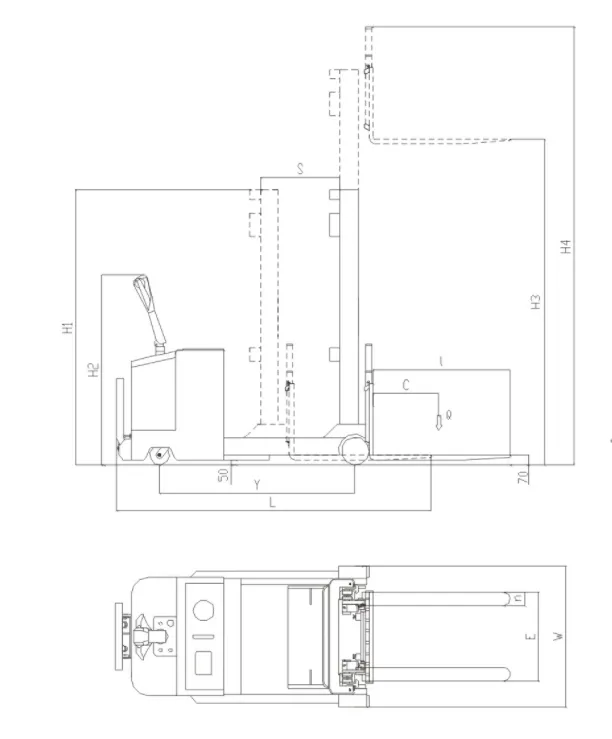

Specifications
| Model Number | FSEM10-16 | FSEM10-25 | FSEM10-30 | FSEM10-35 | FSEM10-40 | FSEM10-45 | FSEM15-16 | FSEM15-25 | FS15-30 |
| Rated Capacity (Q) | kg | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 |
| Load Center (C) | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max. Fork Height (H3) | mm | 1600 | 2500 | 3000 | 3500 | 4000 | 4500 | 1600 | 2500 | 3000 |
| Max. Machine Height (H4) | mm | 2400 | 3300 | 3800 | 4300 | 4800 | 5300 | 2400 | 3300 | 3800 |
| Handle Height (H2) | mm | 1450 |
| Frame Forward Distance (S) | mm | 600 |
| Fork Size (l×n) | mm | 1070×100 | 1070×100 | 1070×100 | 1070×100 | 1070×100 | 1070×100 | 1070×120 | 1070×120 | 1070×120 |
| Overall Fork Width (E) | mm | 220-680 | 220-680 | 220-680 | 220-680 | 220-680 | 220-680 | 260-680 | 260-680 | 260-680 |
| Min.Turning Radius (Wa) | mm | 2000 |
| Wheel Base (Y) | mm | 1470 |
| Max. Travel Speed (No Load) | km/h | 4.5-6 |
| Max. Travel Speed (Full Load) | km/h | 4-5 |
| Max. Gradeability | % | 8-10 |
| Driving Motor | V/kW | 24/1.5 |
| Lifting Motor | V/kW | 24/2.2 |
| Battery | V/Ah | 210 | 210 | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Charger | V/A | 24/30 |
| Overall Length (L) | mm | 2410 |
| Overall Width (W) | mm | 1070 |
| Overall Height (H1) | mm | 2140 | 1830 | 2080 | 2330 | 1910 | 2080 | 2140 | 1830 | 2080 |
| Overall Net Weight | kg | 1710 | 1790 | 1820 | 1850 | 1960 | 1985 | 1725 | 1805 | 1835 |
|
Features
- Telescopic mast and forks facilitate fast and precise pallet handling with extension and retraction capabilities
- Ergonomic design ensures maximum comfort and safety for operators, boosting productivity and efficiency
- Adjustable fork width allows handling of various pallet sizes with forged forks for enhanced strength and reduced thickness.
- The narrow chassis and small turning radius make it ideal for navigating tight aisles and accessing inventory efficiently.
1000/1500kg
4500mm
